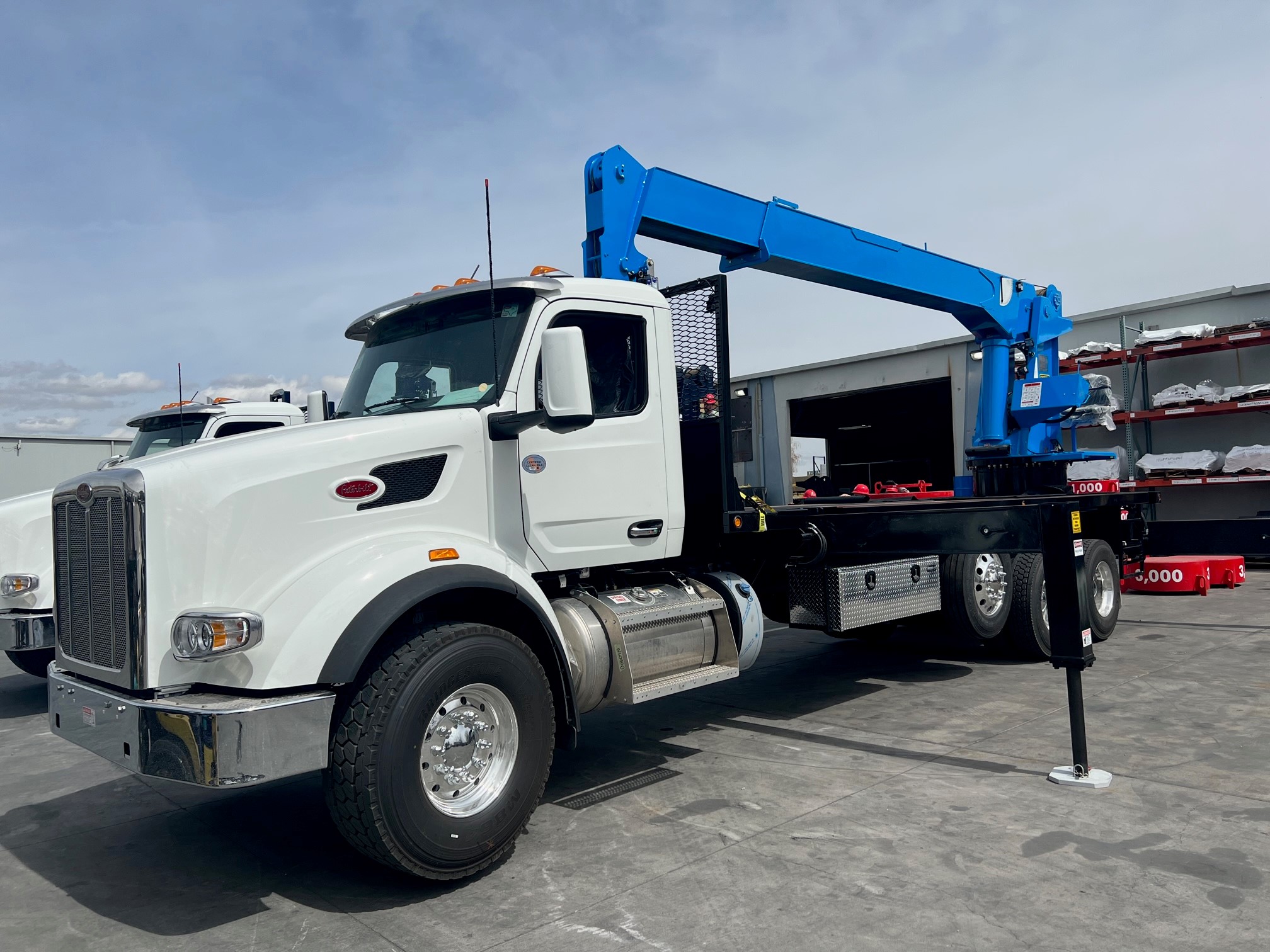

QMC 5030P Remounted
Mounted on 2023 Peterbilt 567
Truck Chassis Details
- CHASSIS: 2023 PeterBilt 567
- CONDITION: New
- MILAGE: 615 mi
- ENGINE: Cummins X15, 500Hp, 1850lb-ft @ 950rpm
- TRANSMISSION: Eaton RTLO18918B 18-Speed
- GVWR: 73,500 lbs
- OTHER: 13.5K Watson-Chalin Lift Axle
- PeterBilt Air Track 40K rear suspension
- California Clean Idle Compliant
Boom Crane Details
- BOOM LENTH: 19' to 30'
- CAPACITY@10′: 50,000 lbs
- CONDITION: Remounted

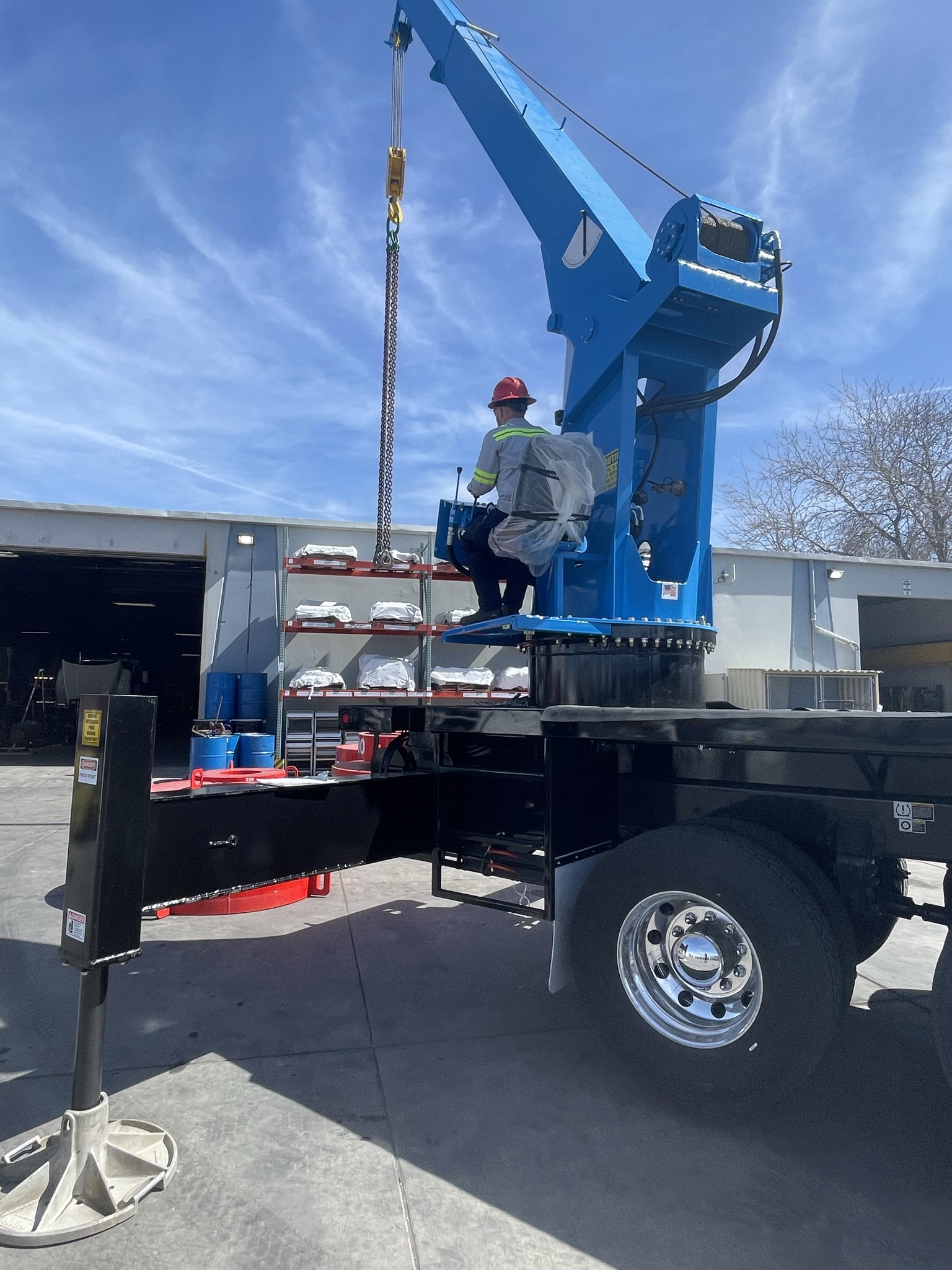

- MOUNTING: Rear Mount Crane with operator swing seat
- OUTRIGGERS: Front Out and Down outriggers, 18’ spread. Rear Out and Down outriggers, 20’ spread.
- GEAR PUMP: 2-section hydraulic gear pump
- DECKING: Apitong hardwood decking
- REEVING: ½” 6x25 FW IWRC EEIPS Braided Steel Cable
- WINCH: 12,000lb winch line pull
- LIGHTING: Boom Stow alarm, underdeck lights, toolbox light circuits
- LOAD SYSTEM: WIKA PRS90 wireless load system
Specifications
Truck dimensions, weights, payload, and lifting performance representative of design baseline. Variations from information shown (truck weights, wheel base, front axle to back of cab, and more) may be accommodated and may result in adjustment of payload, payload size, and crane lifting capacity. Contact QMC Cranes with your requirements.
Load Chart
| Working Radius | Boom Angle | Rated Load | ||
|---|---|---|---|---|
| Rear | Side | Front | ||
| 6 | 74 | 50,000 | 50,000 | 50,000 |
| 8 | 67 | 50,000 | 50,000 | 50,000 |
| 10 | 60 | 50,000 | 50,000 | 50,000 |
| 12 | 53 | 46,500 | 46,500 | 46,500 |
| 15 | 38 | 38,200 | 39,500 | 39,500 |
| 18 | 10 | 30,500 | 30,600 | 30,600 |
| Working Radius | Boom Angle | Rated Load | ||
|---|---|---|---|---|
| Rear | Side | Front | ||
| 8 | 74 | 50,000 | 50,000 | 50,000 |
| 10 | 68 | 49,300 | 49,300 | 49,300 |
| 12 | 63 | 43,300 | 43,300 | 43,300 |
| 15 | 54 | 37,000 | 37,000 | 37,000 |
| 18 | 44 | 30,600 | 30,600 | 30,600 |
| 20 | 36 | 27,000 | 26,200 | 29,700 |
| Working Radius | Boom Angle | Rated Load | ||
|---|---|---|---|---|
| Rear | Side | Front | ||
| 10 | 74 | 47,200 | 47,200 | 47,200 |
| 12 | 69 | 41,200 | 41,200 | 41,200 |
| 15 | 63 | 35,000 | 35,000 | 35,000 |
| 18 | 55 | 30,600 | 30,500 | 30,500 |
| 20 | 50 | 27,000 | 26,300 | 28,400 |
| 25 | 34 | 18,500 | 17,400 | 23,200 |
| 29 | 0 | 14,300 | 13,500 | 16,700 |
| Parts Line | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Load Limit | 8,340 | 16,680 | 25,020 | 33,360 | 41,700 | 50,040 | 0 | 0 |
Do not exceed parts of line ratings.
- Load does not include blocks, slings, and all other equipment used to handle objects being lifted.
- Load ratings are for zero degree list.
- Loads must be freely suspended.
- Rope: Rotation resistant, compacted strand, 9080 lb. capacity.
- This chart is only a guide and should not be used to operate the crane. Individual crane’s load chart, operating instructions, and other instructional plates must be read and understood prior to operating crane.
