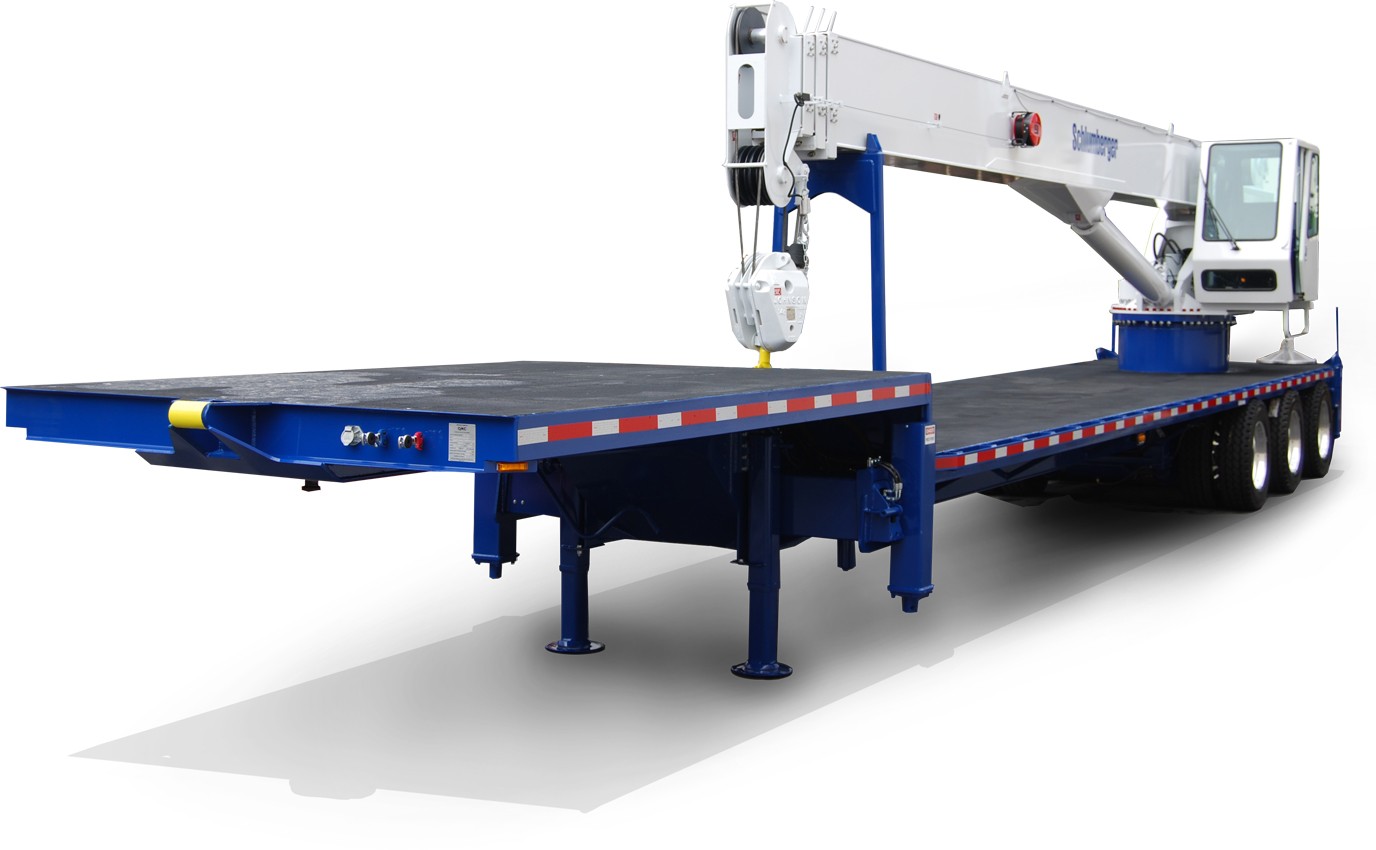

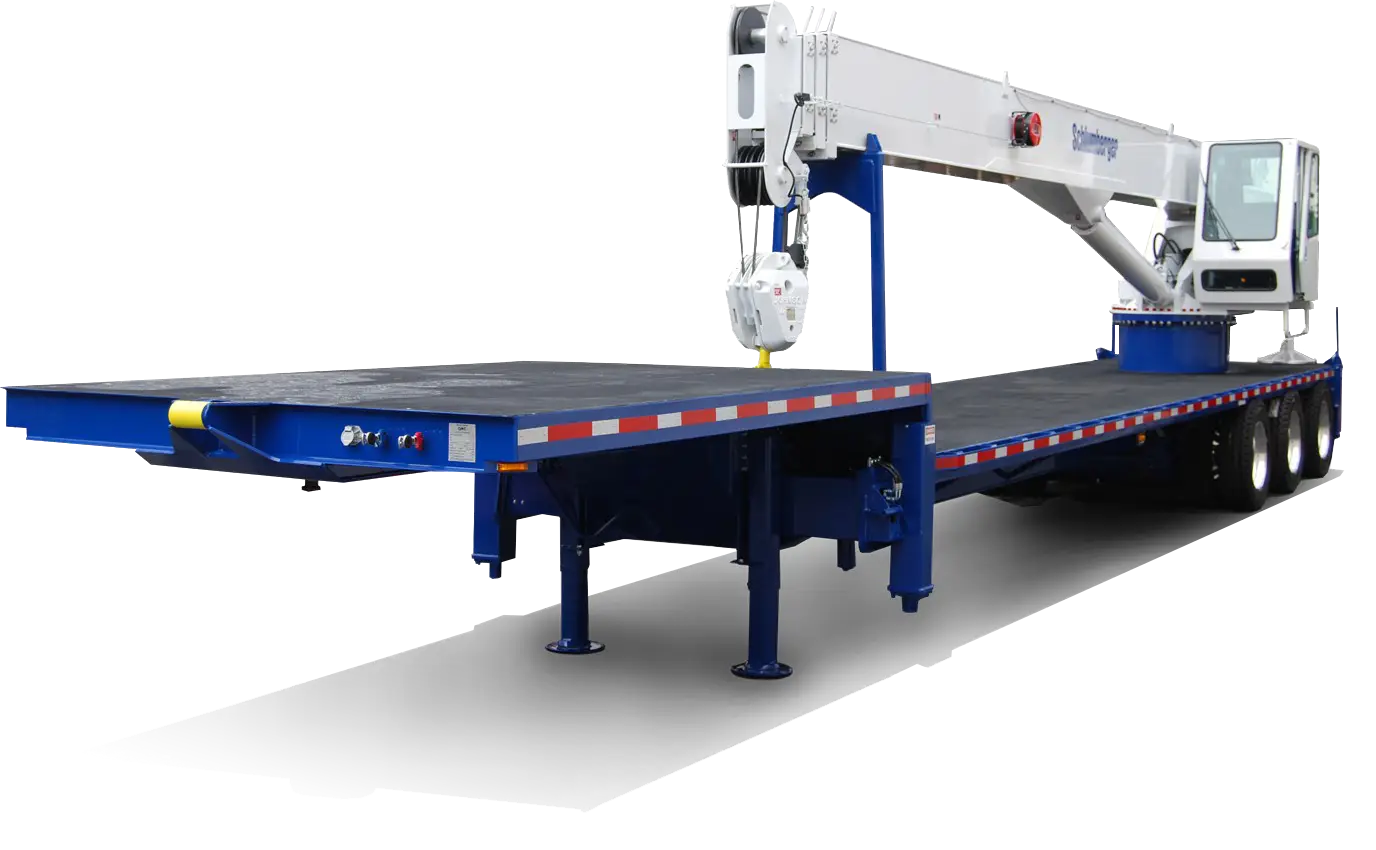

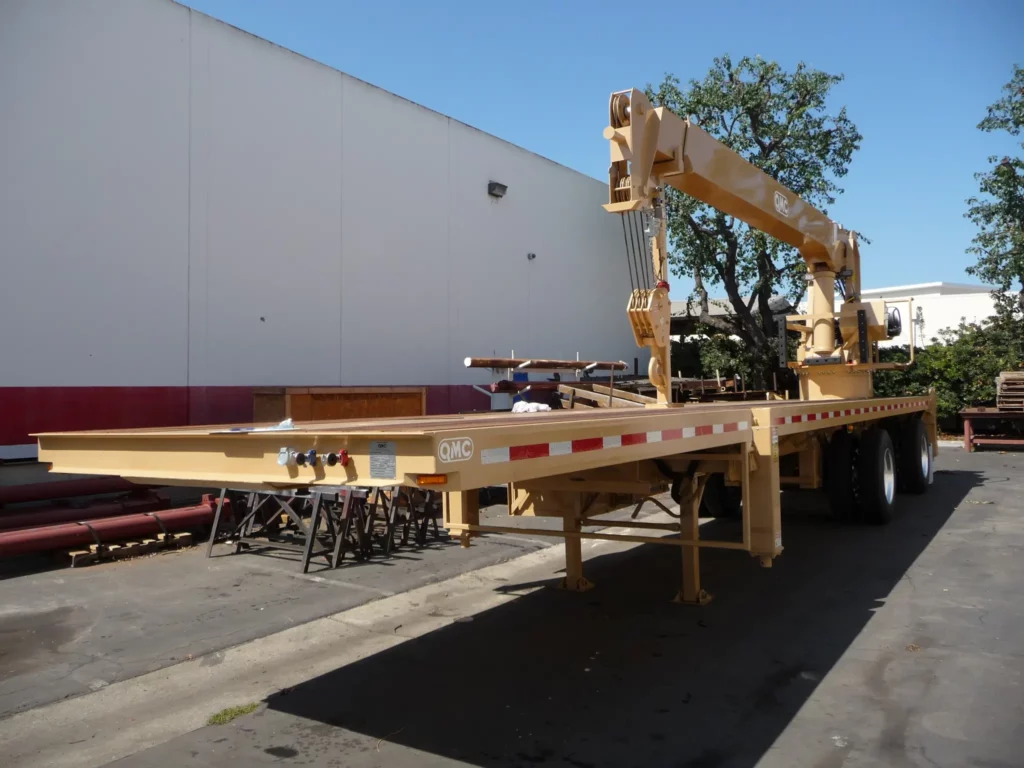

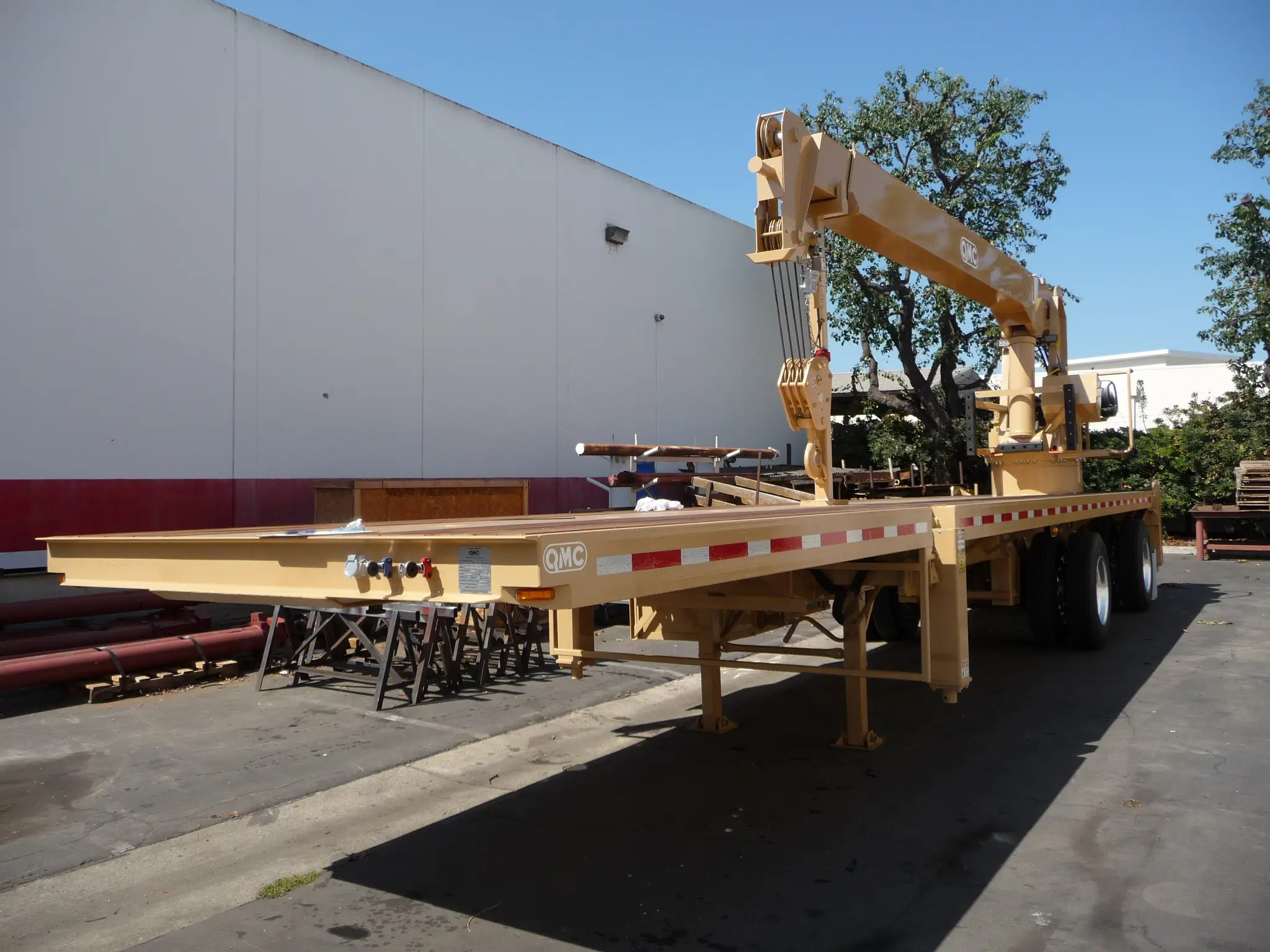

Trailer-Mounted Boom Cranes

QMC trailer-mounted boom cranes are designed for delivery and placement of your heaviest and bulkiest loads. They provide a sensible alternative to hauling and setting nondivisible loads too heavy for truck mounted cranes. An 80,000 pound vehicle weight allowance fully maximizes your payload capability. The trailer-mounted boom crane replaces two vehicles–crane and trailer–with one.

Highlights

  • Allows closest unencumbered access to jobsite over rear to capitalize on highest ratings of crane and increases over rear work area definition for greater productivity.
  • Crane mounting over rear outriggers minimizes structural flex, providing greatest rigidity and stable operating platform.
  • Places crane in a central location between transported load and final set, while preserving payload envelope by placing crane at extreme end of unit.
  • Offers best use of overall unit weight to enhance stability when lifting, minimizes tipping and maximizes lifting, and increase structural zone and operator confidence.
  • Reduces necessity to adjust working radius when transitioning from rear to side quadrants.
  • Available as a flat or drop deck to meet payload size requirements.
  • Air ride suspension is standard to protect equipment and cargo from road shocks.

Options

  • Wide spread tandem axles with lift capability are available to allow for greater loads on tandem axle group and to reduce wear and tear while operating unloaded.
  • Triple rear axles available to allow for best payload placement.

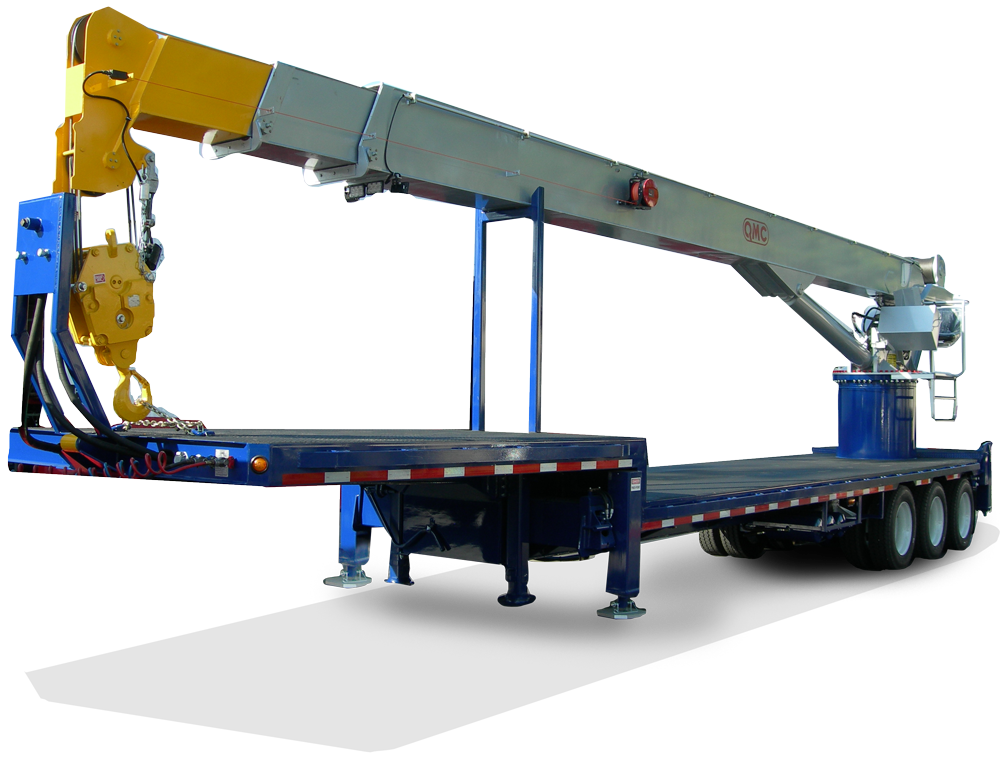

7072T

Boom Length
30’ – 72’ 3 sections

Capacity @ 10 ft.
69,330 LBS


Request a Quote

70100TD

Boom Length
33’ – 100’ 3 sections

Capacity @ 10 ft.
69,030 LBS


Request a Quote

At a Glance

  • Operate crane with continuous 360 degree rotation using ground level controls
  • Withstand all loads produced during crane operation from integral structure
  • Reeve from one to five parts of line without requiring attachment of snatch blocks
  • Get load and stability tested cranes without requiring minimum chassis weight or installation of ballast
  • Mount cranes on wide variety of chassis and cab styles
  • Maximize payloads while observing federal and state axle limits
  • Determine best placement of product with proprietary software
  • Leverage individual controls for functions for easier sets on uneven terrain
  • Transport and set heavier loads
